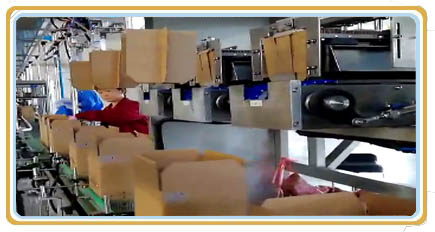

The # Shape Partition Board Insertion Machine is initially designed for beers factory, to place the # shape partition board into the cartions with bottles.
Before the machine is designed, the factory used workers to place the partition board. The machine replace the labors and save cost.
This Partition Inserting Machine can work together with the productions line of wines, drinks, condiments and daily-use chemicals. The Partition Inserting Machine will insert the #-shape boards after the bottles are case packed, and then the whole case will be sealed by next case sealer.
Typical production capacity: About 35-40 cartons/minute.
Compressed air supply: 5～6Bar,30㎥/min.
Partition board pattern: 2×3 or 3×4 or 3×5 etc.
Power supply: 380V/50Hz/3Phase
Control voltage: 24V DC
General power supply: 5KW.
Machine weight: About 860kg
Machine Dimensions: About 4020mm×2746mm×3000mm.
The running is steady and no abnormal noise or vibration.
Main Components List:
PLC: Schneider / Siemens
Touch Panel: Schneider / Siemens
Low voltage electric components: Schneider/Omron
Pneumatic: AirTac or SMC
Proximity Switch: IFM Germany or equivalent
Photo-electric Switch: IFM or SICK
Vacuum Rubber: Schmalz or equivalent
